Keilton + Autani EFS106 Series: Plug and Play High Bay Sensor

Description

EFS106 low voltage high bay sensors are ideal for Luminaire Level Lighting Control
(LLLC/NLC5) applications. Featuring integrated daylight harvesting and PIR motion
sensors, the EFS106 sensors are designed for pre-installation in linear high bay or
UFO high bay luminaires. EFS106 sensors are equipped with the AlgoHTM algorithm
to maximize detection for high bay applications up to 40 ft without false triggers.

Features:

• Plug and Play with sensor port pre-installed
• Bluetooth network technology
• Designed for High Bay applications
• AlgoHTM algorithm enhances performance in high bay applications
• Built-in analog PIR sensor
• Replaceable lens options
• 12V DC input
• Daylight harvesting available

Requirements:

• Lens sold separately
• Requires Dim-to-Off LED drivers with 12V AUX output

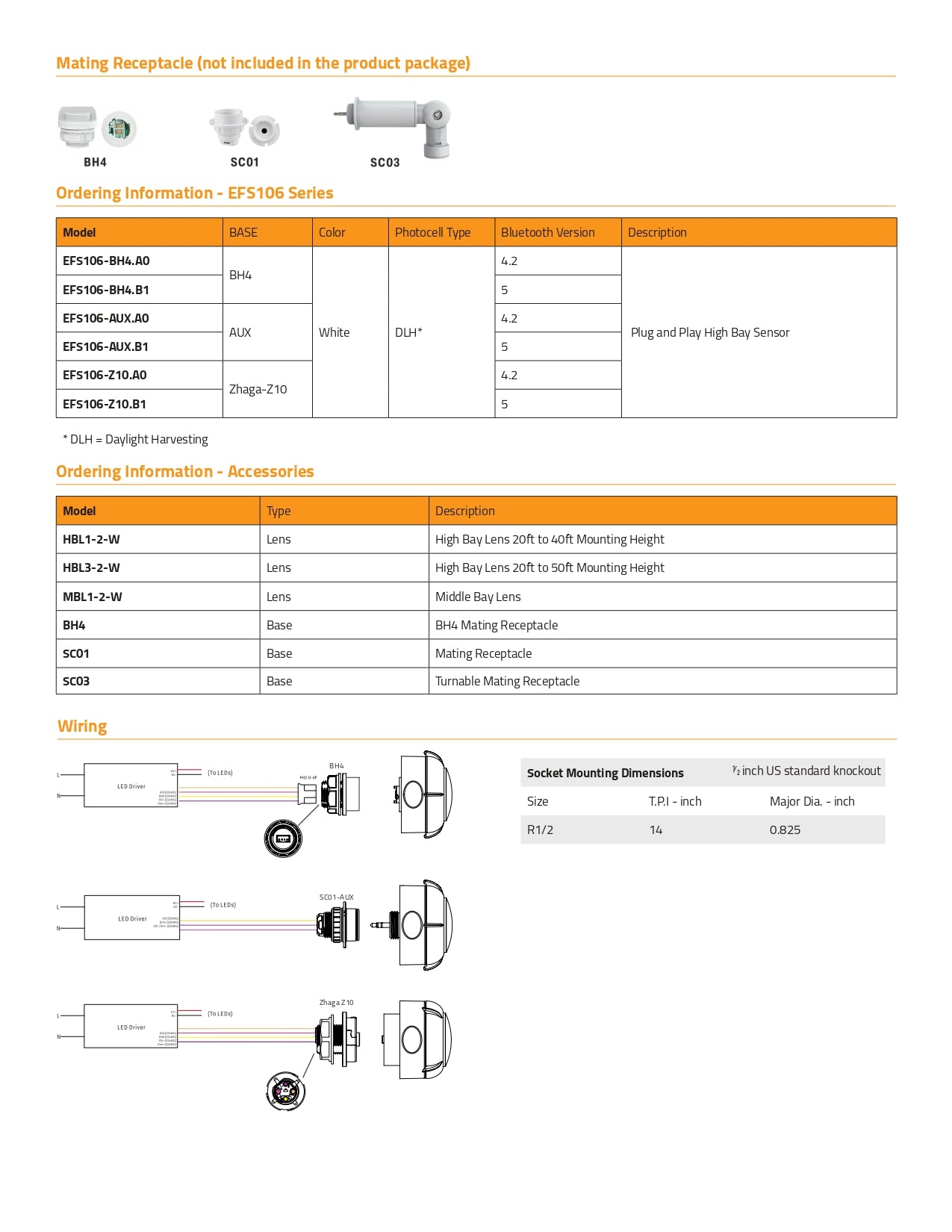

• Requires one of the BH4/SC01/Zhaga receptacles

Specifications

Input Voltage: DC 12V
Input Current: 50mA Max
Input Power: 0.6W

Output Voltage: DC 10V
Output Current: 10mA Max
Output Power: 0.1W

Dimming: Class 2, 0–10V DC (10mA Max)
Sinking Current: 10mA Max

Bluetooth Transmit Range: 100 ft Max
Radio Frequency: 2.4GHz ± 75MHz
Bluetooth Version: 4.2 / 5.0

Housing Material: UL 94-5VA
Color: White, Black

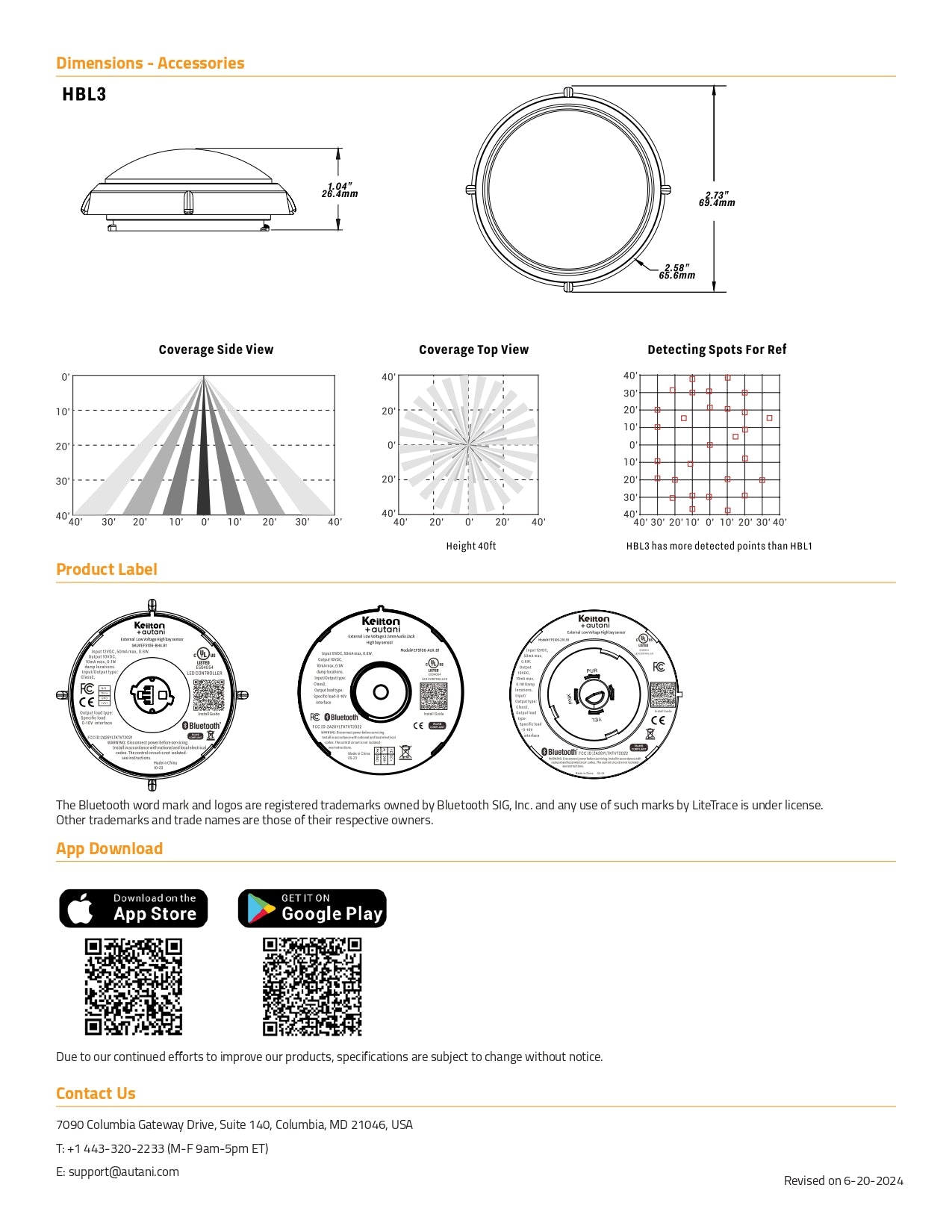

Detection Range: 40–80 ft
Mounting Height: 20–40 ft
Indoor/Outdoor Use: Indoor / Outdoor

Operating Temperature: -30°C to 55°C (-22°F to 131°F)
Storage Temperature: -30°C to 85°C (-22°F to 185°F)
IP Rating: IP40

Warranty: 5 year

Compliance

Safety: UL8750, RoHS
Certification: cULus Listed LED Controller
File Number: E504054
FCC ID: 2A26YLTKTVT2021
DID: D057145
DLC: NLTRC5KL0T
